Field set up Report

FWsim Help & Discussion
1

Hi i a m trying to get a printout that shows what pin,mod, position the name of the effect and the angle for example

Page 1

Mod Pin Address Angle Firework Name Firing Position
1 2 1/2 40 L 20mm Comet A

Page 2

Mod Pin Address Angle Firework Name Firing Position
1 2 1/2 40 L 30mm Comet B

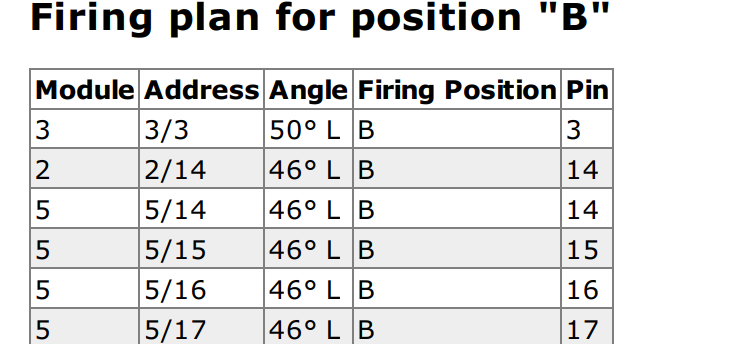

But all i can get is this and then a list of how many of the effects are used

image751Ă—344 27.9 KB

It would really be helpful if the names were include in the first part instead of hoe many at the end. I am trying to set up single shot angle racks. is there a way to do this?

1 Like
2

Hi,

thanks for your message.

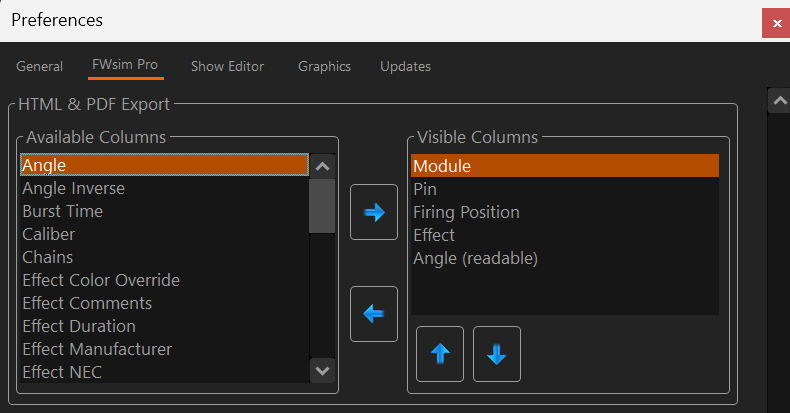

The PDF plan export in FWsim can be customized quite freely in the Preferences menu. Here’s how to do that:

  1. Click Tools → Preferences
  2. Open the “FWsim Pro” tab
  3. Find the section that says “HTML & PDF Export”
  4. Configure it like seen below

image790Ă—413 16.1 KB

Then, when you export a PDF plan, you should get the format you want.

Let me know how this works for you.

Best Regards,
Lukas

1 Like
3

It worked perfect thank you,

2 Likes
